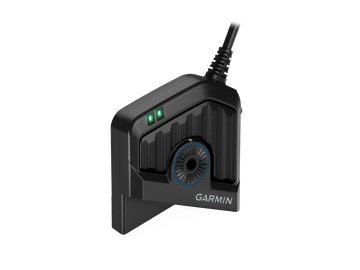

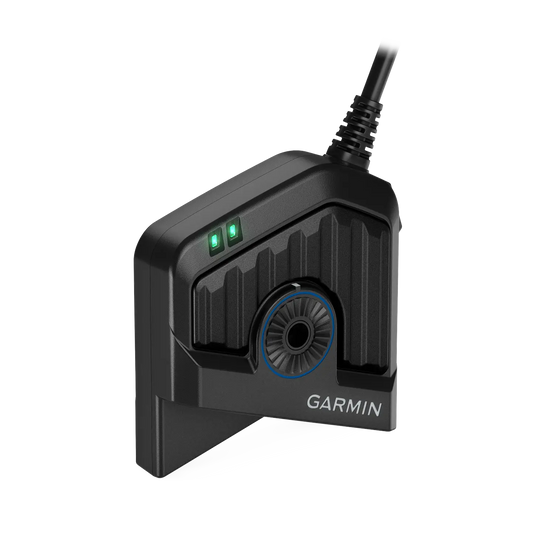

Garmin Livescope 2HD LVS42 Transducer
The Garmin LiveScope 2 HD (LVS42) delivers the clearest live sonar imaging ever — see fish and lures in real time with up to 50% more detail than previous generations. 010-03899-00
OUR CLEAREST SONAR EVER

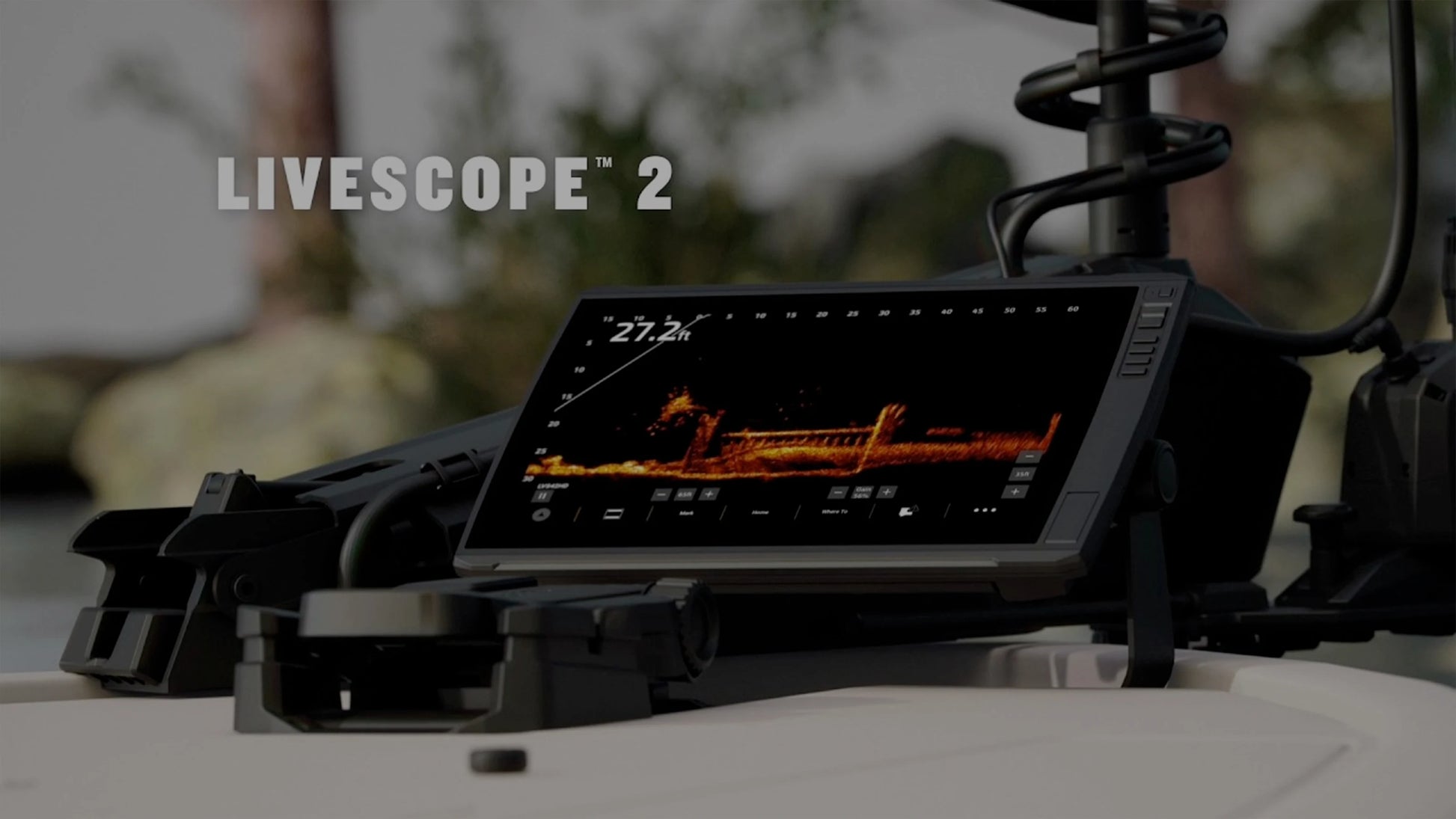

See fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilization and improved stitching, your images are cleaner and crisper.
OUR CLEAREST SONAR
See fish and lures near the boat in up to 50% more detail and 20% higher resolution with reduced sonar artifacts and smoother images compared to previous generations. Plus, bottom track out to 125 feet in freshwater.
NO BLACK BOX
The LiveScope 2 HD transducer connects directly to your compatible chartplotter and power source — making installation easy because there's no black box.
FAST PROCESSING
Enjoy fast processing speeds so you can see fish react in real time and know when to set the hook.

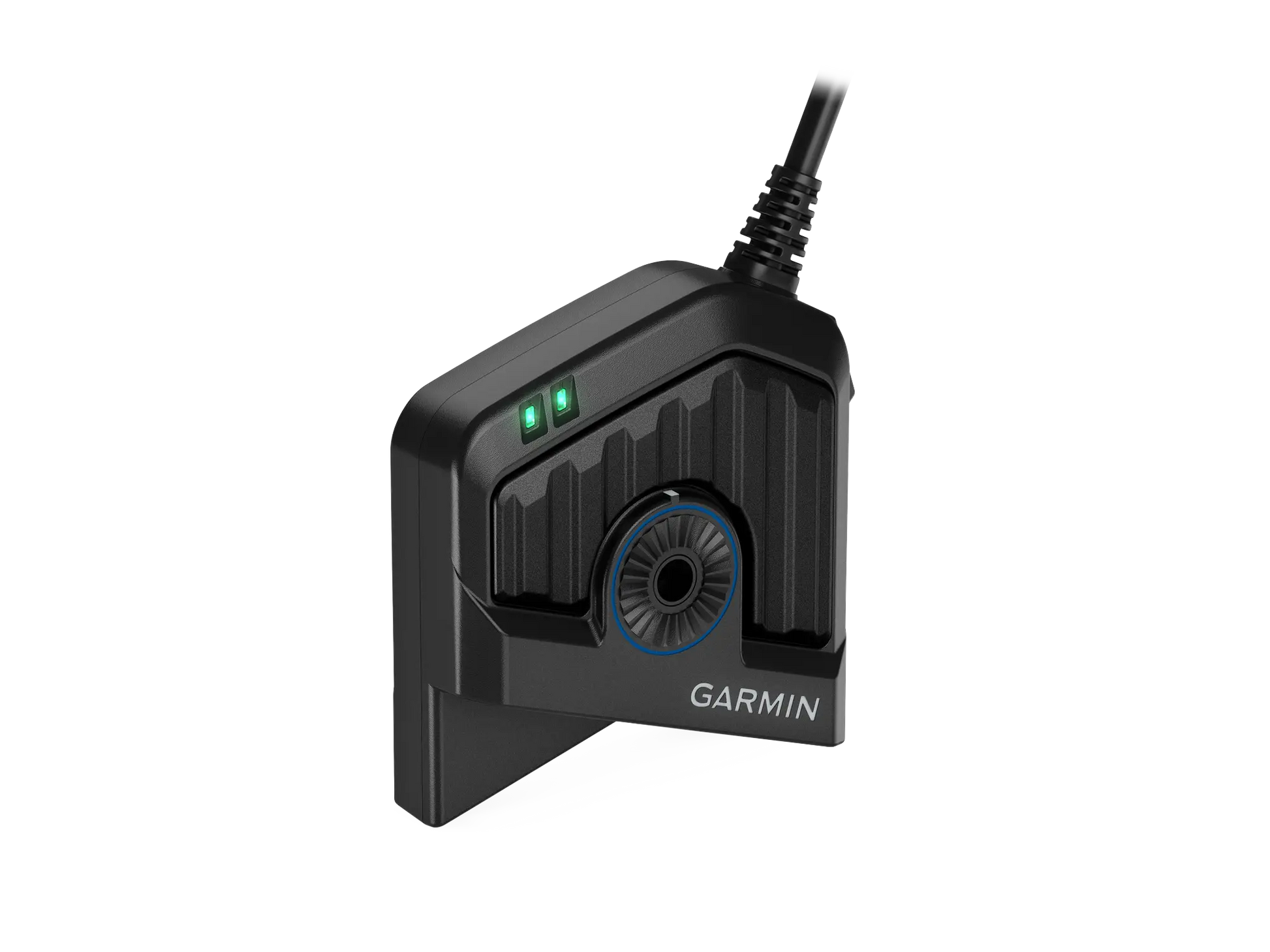

- LiveScope 2 LVS42HD transducer

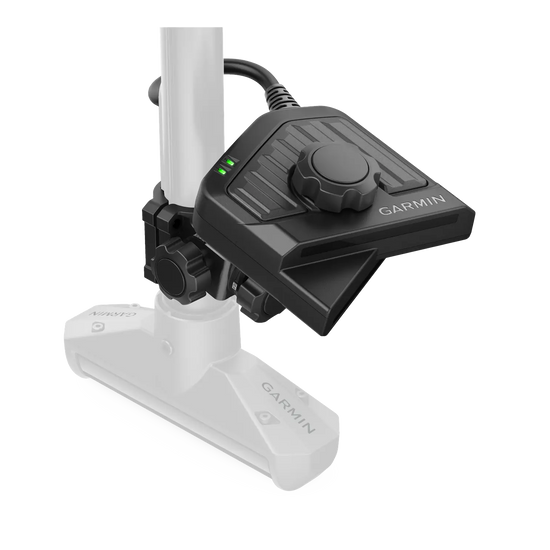

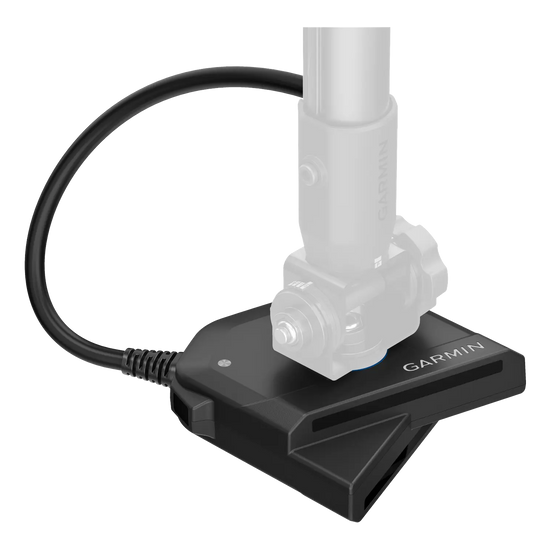

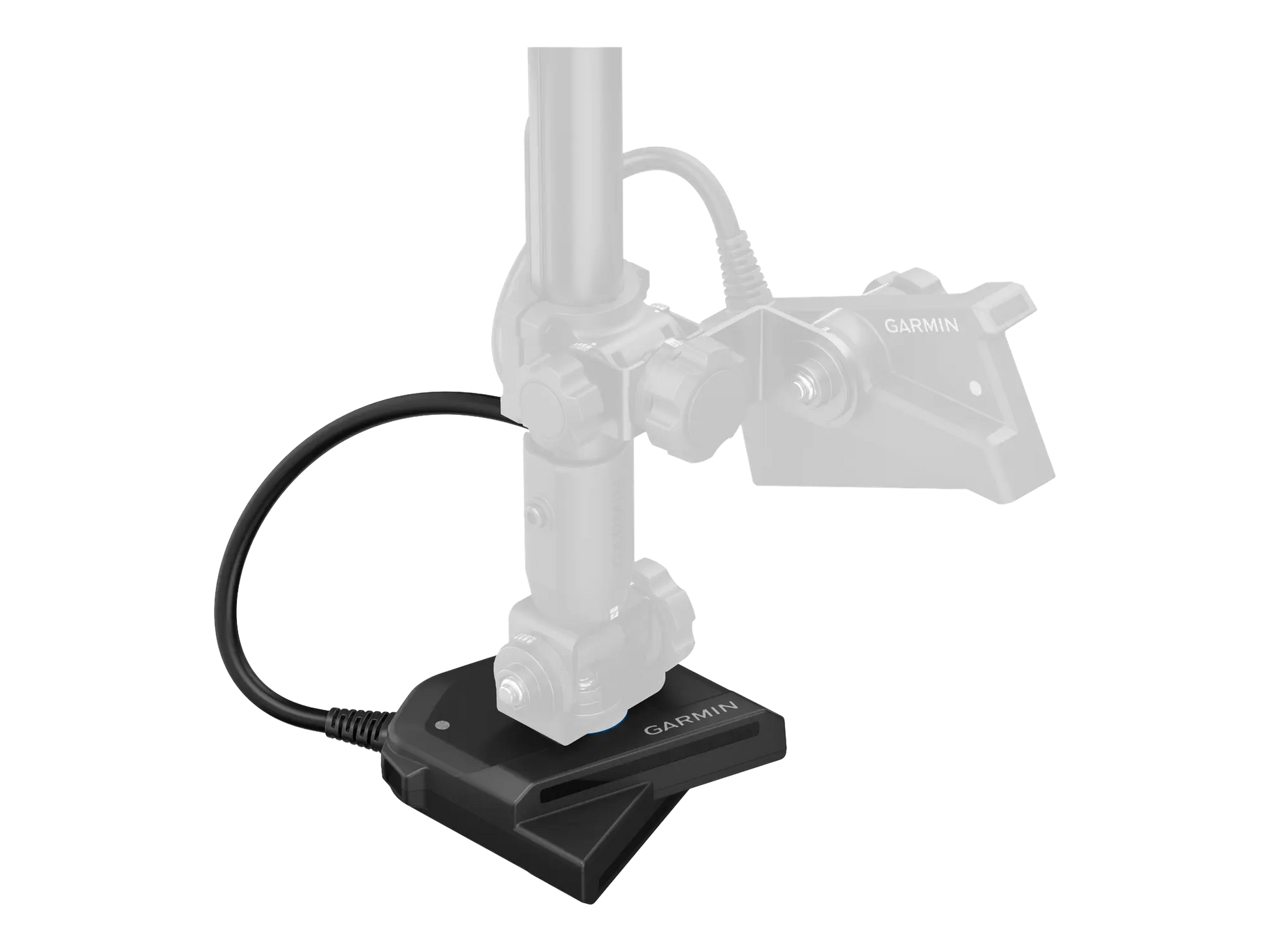

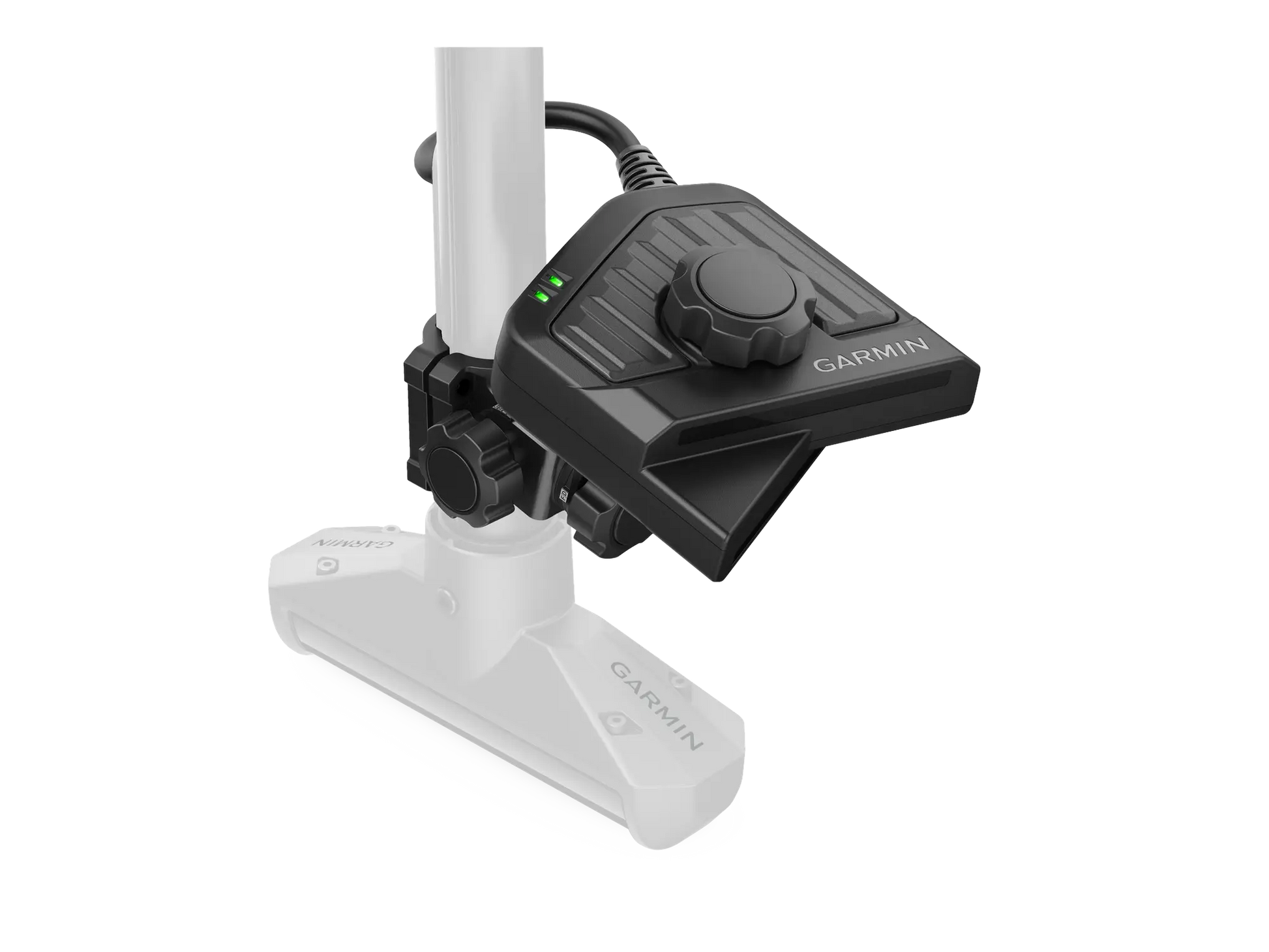

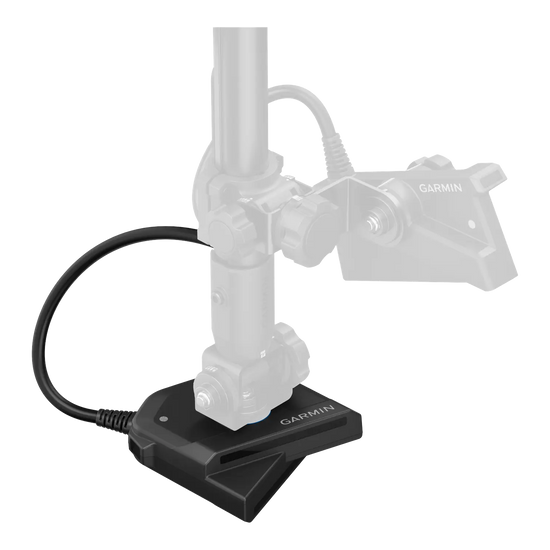

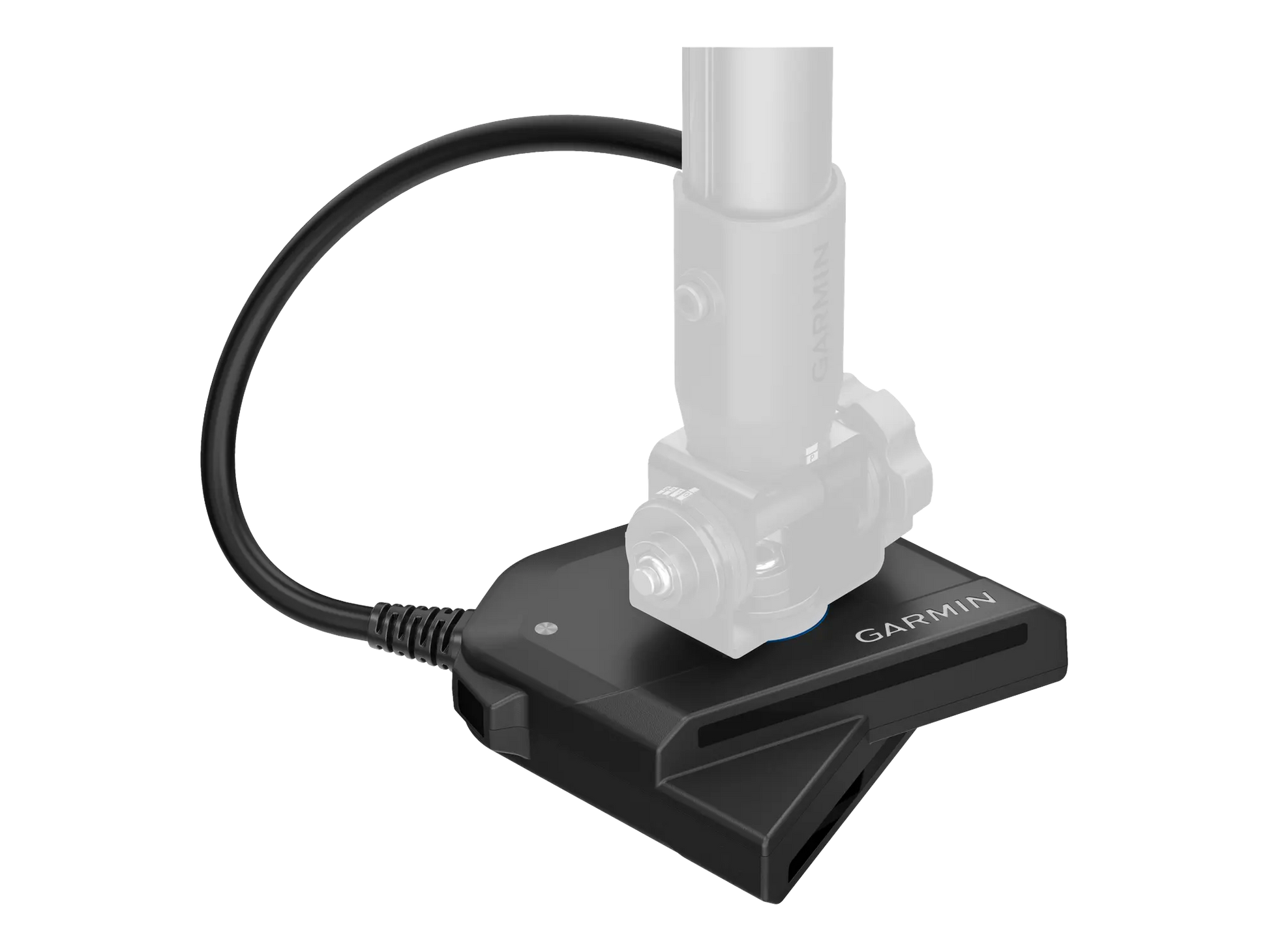

- Adjustable perspective shaft mount for LiveScope 2 transducers

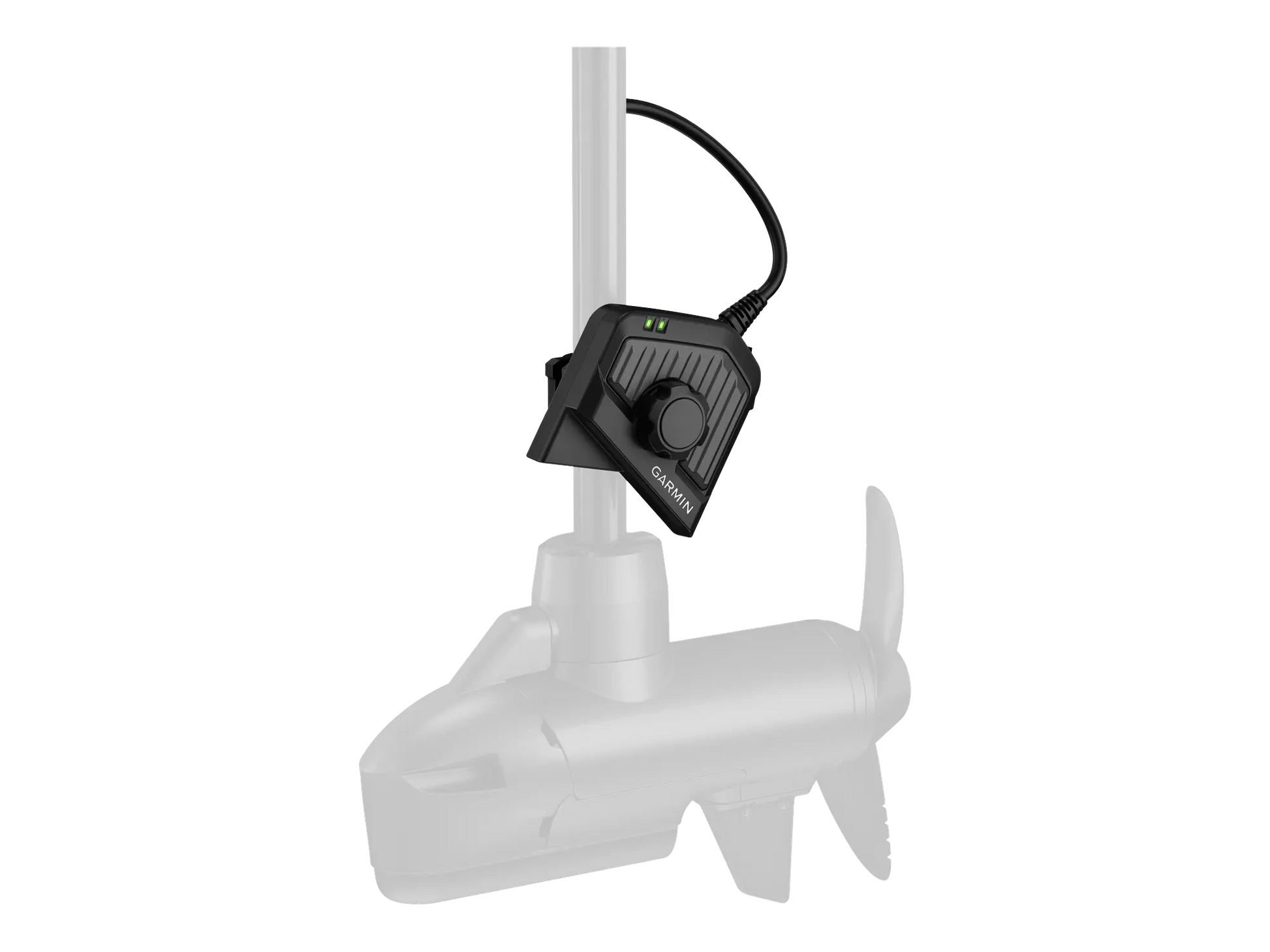

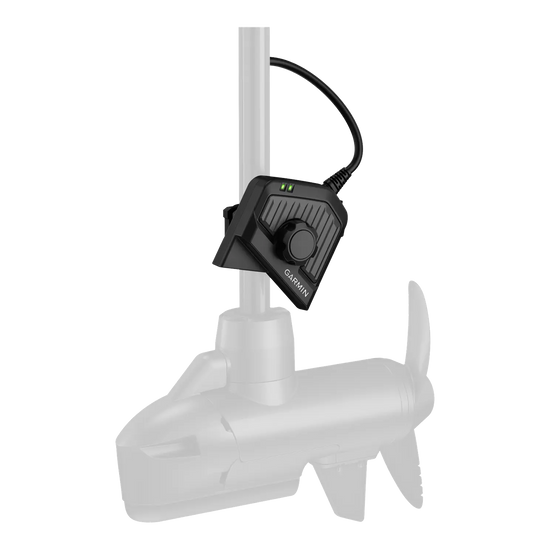

- Trolling motor barrel mount
- Power/network cable with adapter
- Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount
- Hardware
- Documentation
General |
|
| Transducer beamwidth | Forward: 20° x 165° Down, Perspective: 20° x 180° |
|---|---|
| Transducer cable length | 5.5 m (18 ft) |
| Transducer number of pins | 7 |
| Dimension | 5.2" x 5.3" x 1.9" (13.3 x 13.4 x 4.8 cm) |
| Weight |
3.62 lbs (1.646 kg) |
| Temperature range | Operating: 0 C to 40 C |
Electrical Features |
|
| Power input | 10-35 V |
|---|---|
| Power usage | 32 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 4" |
Sonar Features |
|
| Frequency | 850 kHz-1600 kHz |
|---|---|
| Transmit power | 521 W |
| Maximum depth | Down and Forward: 125' |
| Sonar type | Live |
| Target separation @ 100 ft | 12.6" |
| Target separation @ 30 ft | 3.8" |
| Perspective mode mount included | yes (adjustable angles) |
| Water detection transmit control | |
Networking & Connections |
|
| Garmin Marine Network Ports |
1 BlueNet (small connector) with GMN1 Adapter |
|---|---|
| Power connection | yes (2-wire) |
